Nestled in the industrial heart of Manila, Corazon Pipes and Tubes has built a reputation for precision and durability, specializing in high-quality stainless steel corrugated tubing. We understand that the backbone of any great project is reliable materials, which is why our focus is on delivering tubing solutions that meet the rigorous demands of both local and international clients. Our commitment goes beyond supply; we partner with our customers, ensuring they receive products that promise longevity and performance, supporting the very infrastructure of progress across the Philippines and beyond.

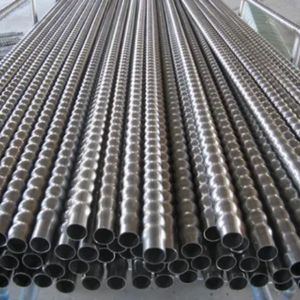

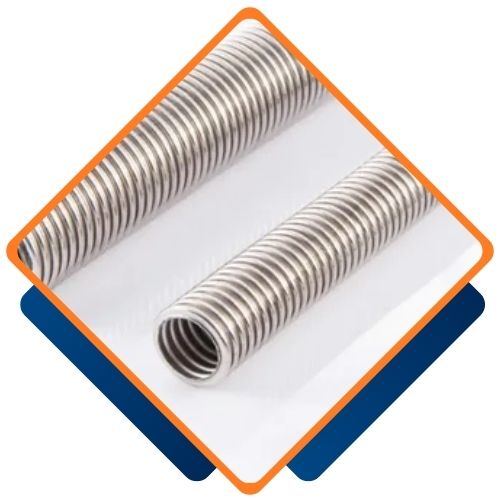

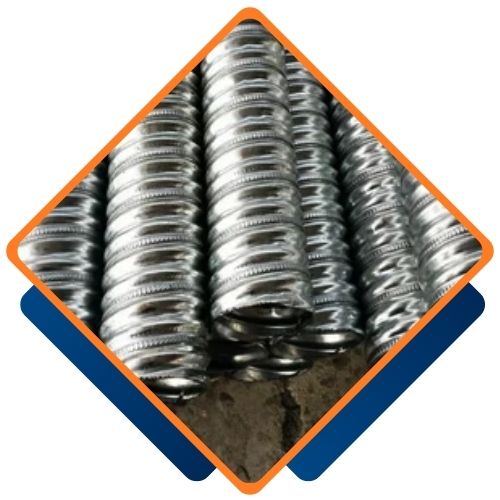

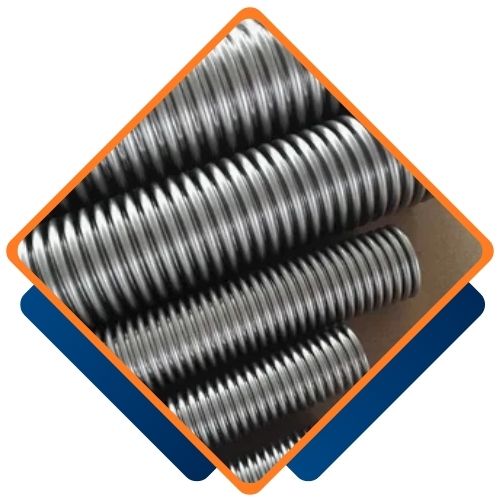

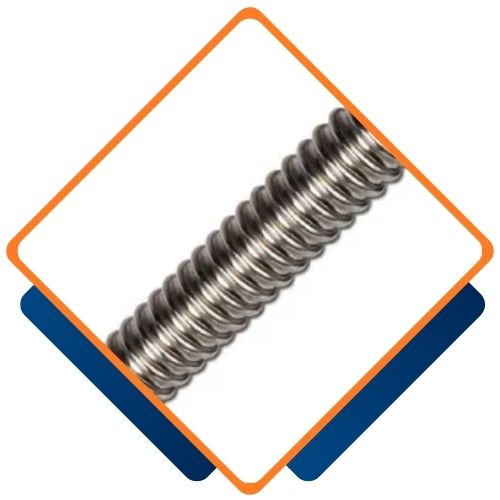

At the core of our tubing is a carefully selected stainless steel composition, primarily from the 300 series, which provides an excellent balance of strength and corrosion resistance. This material is expertly formed into a corrugated design, a clever innovation that transforms a rigid pipe into a remarkably flexible and durable hose. This structure gives it the ability to withstand significant pressure, absorb vibrations, and handle thermal expansion with ease, all while maintaining its integrity under stress, making it a truly resilient component for demanding environments.
| Size Range | 6.35 mm To 50.8 mm OD |
| Length | As per Customer requirement, Maximum upto 22 Meter Long. |
| Thickness | 0.50 mm TO 6.0 mm |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Standard | ASTM A / ASME SA213 |
| Material | SS 304, SS 304L,SS 316,SS 316L |
| Form | Round, Square, Rectangular, Coil, U Tube, Pan Cake. |
| Shapes | Straight tube, Coil tubing |
| Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Finish | SS cottugated tubes and corrugated pipes can be supplied in mechanical polished with various grits like at 80, 120, 240, 320, 400, 600 grit and mirror polished. |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
| STAINLESS STEEL CORRUGATED TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Choosing Stainless Steel Corrugated Tubing from Corazon Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel Corrugated Tubing in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Yes, we offer custom sizes for Stainless Steel Corrugated Tubing to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.
You’ll find Stainless Steel Corrugated Tubing extensively used in piping systems for transferring fluids and gases, including steam, water, and chemicals in petrochemical plants, refineries, and power generation facilities. They’re also employed in HVAC systems, exhaust systems, and instrumentation applications where flexibility, vibration absorption, and thermal expansion compensation are essential. Thanks to their blend of corrosion resistance, mechanical strength, and flexibility, Stainless Steel Corrugated Tubing stands out as the go-to choice for industries that demand reliable, durable, and high-performance tubing solutions.
