Home > Incoloy > Incoloy Tubing
In the heart of Manila’s industrial landscape, Corazon Pipes and Tubes has built a reputation for reliability and expertise, particularly when it comes to high-performance alloys. We understand that the integrity of your project depends on the quality of its most critical components. That’s why, as your trusted local supplier, we are dedicated to providing superior Incoloy tubing, a material chosen for its resilience in the face of extreme environments, ensuring your operations run smoothly and safely.
Incoloy tubing derives its remarkable strength from a sophisticated nickel-iron-chromium composition, often enhanced with elements like molybdenum and copper. This carefully balanced formula grants it exceptional resistance to corrosion, including from potent acids and chloride-induced stress cracking. Mechanically, it maintains impressive tensile strength and durability even when subjected to intense heat and pressure, making it a consistently reliable choice where other materials might fail.
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
|---|---|
| Incoloy Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |

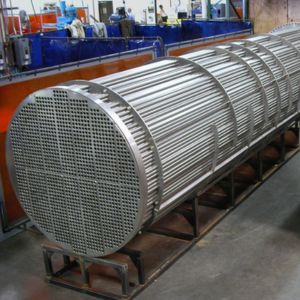

| Specialize in | Incoloy Capillary Tube & Other Odd Size Incoloy Heat Exchanger & Condenser Tubes |
| Incoloy tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Incoloy Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Incoloy Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |

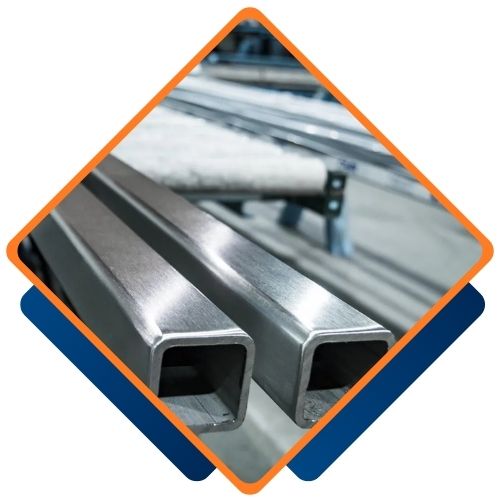

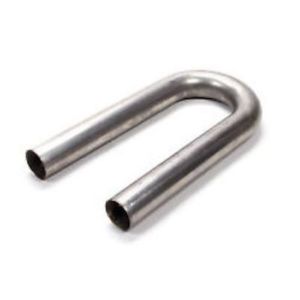

| Incoloy tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Incoloy Welded Tube Size | 6.35 mm OD To 152 mm OD |
| End | Plain End, Beveled End, Treaded |
| Incoloy Tube Standards | ASTM B163, B516 / ASME SB163, ASME SB516 |
| Marking | All Incoloy Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Incoloy Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″ , 1/8″ , 3/16″ |
| .020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″ , 3/16″ |
| .028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
| .035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
| .083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
| .095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
| .125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
| Element | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy Tubes from Corazon Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Corazon Pipes and Tubes, one of the largest suppliers of Incoloy Tubing in the Manilas, Philippines. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Yes, we provide custom sizes for Incoloy Tubes to meet your specific requirements. At Corazon Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@corazonpipes.com.
Incoloy Tubing is extensively utilized in industries that require resistance to corrosion, heat, and chemical exposure. It’s perfect for chemical processing equipment, heat exchangers, boilers, pressure vessels, and piping systems operating in high-temperature or aggressive media environments. The tubing is also employed in marine engineering, power generation, and aerospace sectors, where reliability and long-lasting performance are crucial. Engineers and designers rely on Corazon Pipes’ Incoloy Tubing for its proven track record in demanding applications.
