Incoloy Welded Tubing

Home > Incoloy > Incoloy Welded Tubing

Incoloy Welded Tubing Manufacturer, Supplier and Exporter in Manila, Philippines

Nestled in the heart of Manila, Philippines, Corazon Pipes and Tubes is a dedicated manufacturer and supplier known for precision and reliability. Our specialty, Incoloy welded tubing, is crafted for those critical applications where failure is not an option. We understand that the integrity of your project hinges on the quality of its components, which is why we focus on delivering tubing solutions that meet rigorous international standards and stand up to the most demanding conditions.

Incoloy Welded Tubing Supplier in Manila, Incoloy Welded Tubing Exporters in Cebu City, Incoloy Welded Tubing Manufacturer in West Manila, Incoloy Welded Tubes Price List in Philippines, Incoloy Welded Tubing Suppliers in Manila,Incoloy Welded Tubing Puerto Princesa, Stockist of Incoloy Welded Tubes Philippines, Incoloy Welded Tubing Size Chart

The unique composition of Incoloy, rich in nickel, chromium, and iron, is what grants it such impressive resistance. This alloy can handle extremely high temperatures and aggressive corrosive environments that would damage other materials. The resulting welded tubing is not just strong, but also incredibly durable, maintaining its structural integrity over a long service life even when faced with intense heat and chemical exposure.

Incoloy Welded Tubes Specification

Standards	ASTM / ASME B407, B514, B515 / SB407, SB514, SB515
Pipes & Tubes Size	1 / 8″ NB – 24″ NB
Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Manufacturing Techniques	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Schedule Thickness Range	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
End Types	Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing
Types	Welded

Incoloy Welded Tubing Weight Chart

NPS (DN)	WEIGHT LB/FT (KG/M)	SCH	Outside Diameter IN (Milimeter)	ID	WT IN (Milimeter)
32 (800)	84.085 (126.032)	.0.0.0	32.00 (813)	.0.0.0	0.025 (6.035)
32 (800)	95.028 (141.09)	.0.0.0	32.00 (813)	.0.0.0	0.0281 (7.014)
32 (800)	105.069 (157.025)	10	32.00 (813)	.0.0.0	0.0312 (7.092)
32 (800)	116.041 (173.035)	.0.0.0	32.00 (813)	.0.0.0	0.0344 (8.074)
32 (800)	126.078 (188.083)	.0.0.0	32.00 (813)	STD	0.0375 (9.053)
32 (800)	137.012 (204.009)	.0.0.0	32.00 (813)	.0.0.0	0.0406 (10.031)
32 (800)	147.078 (220.01)	.0.0.0	32.00 (813)	.0.0.0	0.0438 (11.013)
32 (800)	158.008 (235.029)	.0.0.0	32.00 (813)	.0.0.0	0.0469 (11.091)
32 (800)	168.037 (250.065)	20	32.00 (813)	XS	0.05 (12.07)
32 (800)	188.087 (281.009)	.0.0.0	32.00 (813)	.0.0.0	0.0562 (14.027)
32 (800)	209.062 (312.017)	30	32.00 (813)	.0.0.0	0.0625 (15.088)
32 (800)	230.029 (342.094)	40	32.00 (813)	.0.0.0	0.0688 (17.048)
32 (800)	250.055 (373.00)	.0.0.0	32.00 (813)	.0.0.0	0.075 (19.005)
32 (800)	270.072 (402.094)	.0.0.0	32.00 (813)	.0.0.0	0.0812 (20.062)
32 (800)	291.014 (433.052)	.0.0.0	32.00 (813)	.0.0.0	0.0875 (22.023)
32 (800)	311.047 (463.078)	.0.0.0	32.00 (813)	.0.0.0	0.0938 (23.083)
32 (800)	331.039 (493.035)	.0.0.0	32.00 (813)	.0.0.0	1.00 (25.04)
32 (800)	351.023 (522.08)	.0.0.0	32.00 (813)	.0.0.0	1.0062 (26.097)
32 (800)	371.031 (552.088)	.0.0.0	32.00 (813)	.0.0.0	1.0125 (28.058)
32 (800)	391.03 (582.064)	.0.0.0	32.00 (813)	.0.0.0	1.0188 (30.018)
32 (800)	410.09 (611.072)	.0.0.0	32.00 (813)	.0.0.0	1.025 (31.075)
34 (850)	90.02 (134.031)	.0.0.0	34.00 (864)	.0.0.0	0.025 (6.035)
34 (850)	101.029 (150.088)	.0.0.0	34.00 (864)	.0.0.0	0.0281 (7.014)
34 (850)	112.036 (167.021)	10	34.00 (864)	.0.0.0	0.0312 (7.092)
34 (850)	123.077 (184.034)	.0.0.0	34.00 (864)	.0.0.0	0.0344 (8.074)
34 (850)	134.079 (200.082)	.0.0.0	34.00 (864)	STD	0.0375 (9.053)
34 (850)	145.08 (217.006)	.0.0.0	34.00 (864)	.0.0.0	0.0406 (10.031)
34 (850)	157.014 (234.01)	.0.0.0	34.00 (864)	.0.0.0	0.0438 (11.013)
34 (850)	168.011 (250.027)	.0.0.0	34.00 (864)	.0.0.0	0.0469 (11.091)
34 (850)	179.006 (266.063)	20	34.00 (864)	XS	0.05 (12.07)
34 (850)	200.089 (299.004)	.0.0.0	34.00 (864)	.0.0.0	0.0562 (14.027)
34 (850)	222.099 (332.014)	30	34.00 (864)	.0.0.0	0.0625 (15.088)
34 (850)	245.00 (364.092)	40	34.00 (864)	.0.0.0	0.0688 (17.048)
34 (850)	266.058 (396.096)	.0.0.0	34.00 (864)	.0.0.0	0.075 (19.005)
34 (850)	288.008 (428.088)	.0.0.0	34.00 (864)	.0.0.0	0.0812 (20.062)
34 (850)	309.084 (461.048)	.0.0.0	34.00 (864)	.0.0.0	0.0875 (22.023)
34 (850)	331.052 (493.075)	.0.0.0	34.00 (864)	.0.0.0	0.0938 (23.083)
34 (850)	352.077 (525.03)	.0.0.0	34.00 (864)	.0.0.0	1.00 (25.04)
34 (850)	373.094 (556.073)	.0.0.0	34.00 (864)	.0.0.0	1.0062 (26.097)
34 (850)	395.036 (588.083)	.0.0.0	34.00 (864)	.0.0.0	1.0125 (28.058)
34 (850)	416.07 (620.06)	.0.0.0	34.00 (864)	.0.0.0	1.0188 (30.018)
34 (850)	437.062 (651.065)	.0.0.0	34.00 (864)	.0.0.0	1.025 (31.075)
36 (900)	95.054 (142.014)	.0.0.0	36.00 (914)	.0.0.0	0.025 (6.035)
36 (900)	107.03 (159.068)	.0.0.0	36.00 (914)	.0.0.0	0.0281 (7.014)
36 (900)	119.003 (176.097)	10	36.00 (914)	.0.0.0	0.0312 (7.092)
36 (900)	131.012 (195.012)	.0.0.0	36.00 (914)	.0.0.0	0.0344 (8.074)
36 (900)	142.081 (212.057)	.0.0.0	36.00 (914)	STD	0.0375 (9.053)
36 (900)	154.048 (229.077)	.0.0.0	36.00 (914)	.0.0.0	0.0406 (10.031)
36 (900)	166.051 (247.082)	.0.0.0	36.00 (914)	.0.0.0	0.0438 (11.013)
36 (900)	178.014 (264.096)	.0.0.0	36.00 (914)	.0.0.0	0.0469 (11.091)
36 (900)	189.075 (282.029)	20	36.00 (914)	XS	0.05 (12.07)
36 (900)	212.09 (316.063)	.0.0.0	36.00 (914)	.0.0.0	0.0562 (14.027)
36 (900)	236.035 (351.073)	30	36.00 (914)	.0.0.0	0.0625 (15.088)
36 (900)	259.071 (386.047)	.0.0.0	36.00 (914)	.0.0.0	0.0688 (17.048)
36 (900)	282.062 (420.045)	40	36.00 (914)	.0.0.0	0.075 (19.005)
36 (900)	305.044 (454.03)	.0.0.0	36.00 (914)	.0.0.0	0.0812 (20.062)
36 (900)	328.055 (488.089)	.0.0.0	36.00 (914)	.0.0.0	0.0875 (22.023)
36 (900)	351.057 (523.014)	.0.0.0	36.00 (914)	.0.0.0	0.0938 (23.083)
36 (900)	374.015 (556.062)	.0.0.0	36.00 (914)	.0.0.0	1.00 (25.04)
36 (900)	396.064 (589.098)	.0.0.0	36.00 (914)	.0.0.0	1.0062 (26.097)
36 (900)	419.042 (624.007)	.0.0.0	36.00 (914)	.0.0.0	1.0125 (28.058)
36 (900)	442.01 (657.081)	.0.0.0	36.00 (914)	.0.0.0	1.0188 (30.018)
36 (900)	464.035 (690.08)	.0.0.0	36.00 (914)	.0.0.0	1.025 (31.075)
38 (950)	125.07 (186.094)	.0.0.0	38.00 (965)	.0.0.0	0.0312 (7.092)
38 (950)	138.047 (206.011)	.0.0.0	38.00 (965)	.0.0.0	0.0344 (8.074)
38 (950)	150.083 (224.056)	.0.0.0	38.00 (965)	STD	0.0375 (9.053)
38 (950)	163.016 (242.074)	.0.0.0	38.00 (965)	.0.0.0	0.0406 (10.031)
38 (950)	175.087 (261.082)	.0.0.0	38.00 (965)	.0.0.0	0.0438 (11.013)
38 (950)	188.017 (279.094)	.0.0.0	38.00 (965)	.0.0.0	0.0469 (11.091)
38 (950)	200.044 (298.026)	.0.0.0	38.00 (965)	XS	0.05 (12.07)
38 (950)	224.092 (334.058)	.0.0.0	38.00 (965)	.0.0.0	0.0562 (14.027)
38 (950)	249.071 (371.07)	.0.0.0	38.00 (965)	.0.0.0	0.0625 (15.088)
38 (950)	274.042 (408.046)	.0.0.0	38.00 (965)	.0.0.0	0.0688 (17.048)
38 (950)	298.065 (444.041)	.0.0.0	38.00 (965)	.0.0.0	0.075 (19.005)
38 (950)	322.08 (480.024)	.0.0.0	38.00 (965)	.0.0.0	0.0812 (20.062)
38 (950)	347.026 (516.085)	.0.0.0	38.00 (965)	.0.0.0	0.0875 (22.023)
38 (950)	371.063 (553.011)	.0.0.0	38.00 (965)	.0.0.0	0.0938 (23.083)
38 (950)	395.053 (588.057)	.0.0.0	38.00 (965)	.0.0.0	1.00 (25.04)
38 (950)	419.035 (623.09)	.0.0.0	38.00 (965)	.0.0.0	1.0062 (26.097)
38 (950)	443.047 (660.001)	.0.0.0	38.00 (965)	.0.0.0	1.0125 (28.058)
38 (950)	467.05 (695.077)	.0.0.0	38.00 (965)	.0.0.0	1.0188 (30.018)
38 (950)	491.007 (730.074)	.0.0.0	38.00 (965)	.0.0.0	1.025 (31.075)

Incoloy Welded Tubing Chemical Composition

Element	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Incoloy Welded Tubing Exporter Philippines, Incoloy Welded Tubing Price List in Manila, Welded Incoloy Tubes Supplier in Cebu City, Incoloy Welded Tubing Exporter in West Manila, Incoloy Welded Tubing Exporter Manila,Welded Incoloy Tubing Price in Puerto Princesa, Incoloy Welded Tubing Weight Chart, Incoloy Welded Tubing Thickness, Austenitic Welded Incoloy Tube Suppliers in Philippines, Incoloy Welded Tubing Distributor

Why Choose Incoloy Welded From Corazon Pipes and Tubes?

Choosing Incoloy Welded Tubes from Corazon Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Incoloy Welded Tubing Supplier in Manila, Philippines

Corazon Pipes and Tubes, one of the largest suppliers of Incoloy Welded Tubing in the Manilas, Philippines. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.

Incoloy Welded Tubing Exporter in Puerto Princesa, Alloy Welded Tubing Exporters in Manila,Incoloy Welded Tubing Supplier in Cebu City, Incoloy Welded Tubing Manufacturers in West Manila, Austenitic Incoloy Welded Tubing Dealer in Manila, Incoloy Welded Tubing Suppliers in Dealer in Philippines, Incoloy Welded Tubing Exporters Cebu City

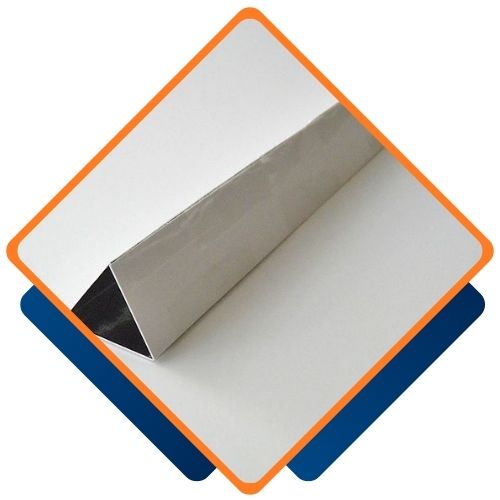

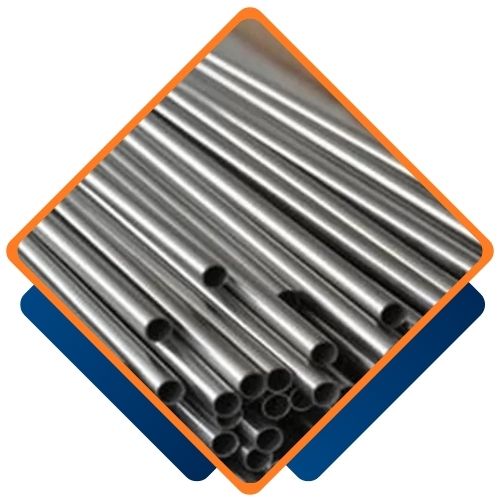

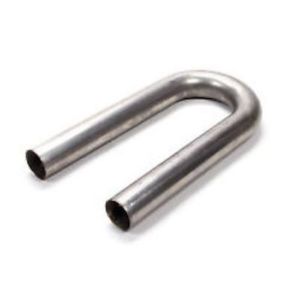

Types of Incoloy Welded Tubing

Incoloy Tubing Welded Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Are Custom Sizes Available for Incoloy Welded Tubes?

Yes, we provide custom sizes for Incoloy Welded Tubes to meet your specific requirements. At Corazon Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@corazonpipes.com.

Incoloy Welded Tubing Supplier in Philippines, Incoloy Welded Tubing Exporter in West Manila,Incoloy Welded Tubing Manufacturer in Manila,Welded Incoloy Tubes Suppliers in Manila, Incoloy Welded Tubing Exporter Puerto Princesa, Price of Welded Incoloy Tube West Manila, Incoloy Welded Tubes Size in mm

Incoloy Welded Tubing is widely utilized across various industries thanks to its strength and resistance to corrosion. It’s commonly found in chemical and petrochemical plants, marine engineering, heat exchangers, and power generation systems, where high temperatures and corrosive substances are prevalent. The tubing is also essential in boiler components, gas turbines, and aerospace applications that demand durable, high-strength materials. Its ability to endure thermal cycling and aggressive chemicals makes it a go-to choice for many demanding applications.
