Home > Stainless Steel > Stainless Steel Square Pipes
Nestled in the industrial heart of Manila, Corazon Pipes and Tubes has built a strong reputation for reliability and craftsmanship in the metal supply industry. We understand that the backbone of any great project is quality materials, which is why we take genuine pride in producing and supplying superior stainless steel square pipes. Our commitment goes beyond just meeting specifications; we aim to be a trusted partner for builders, fabricators, and innovators across the Philippines, providing the foundational components that turn ambitious blueprints into enduring structures.

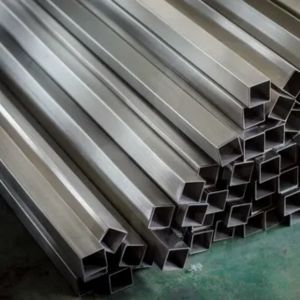

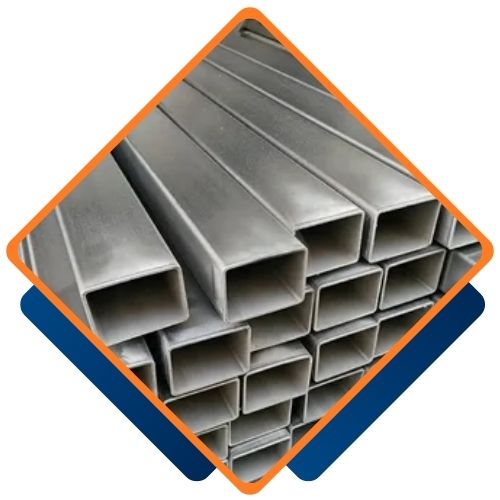

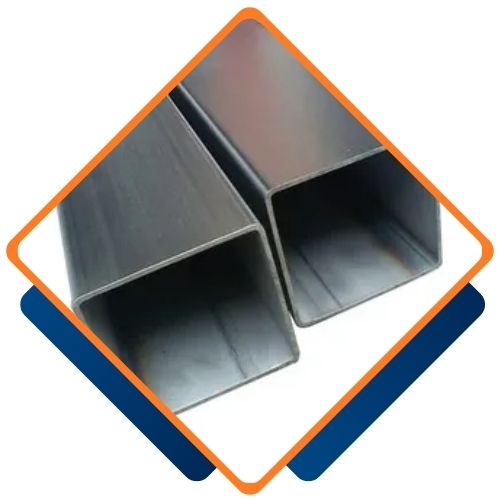

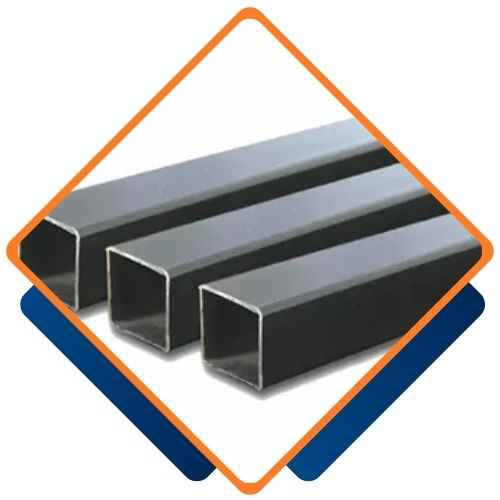

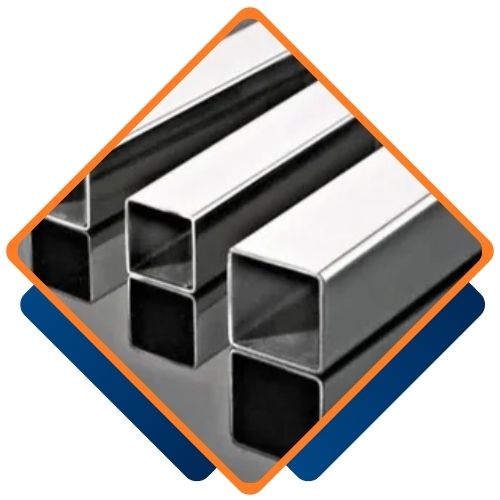

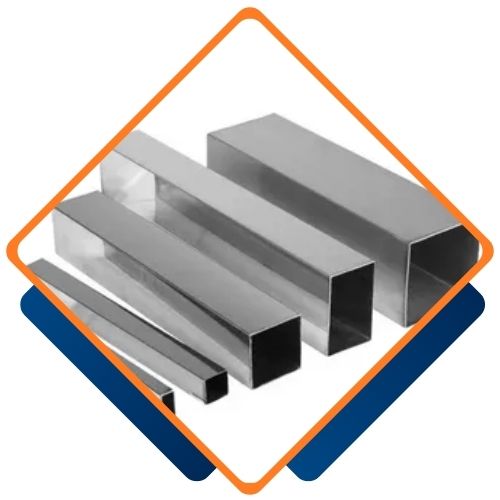

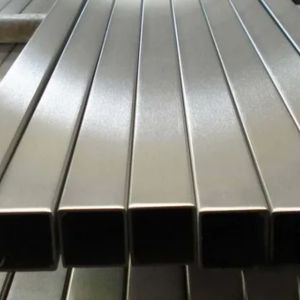

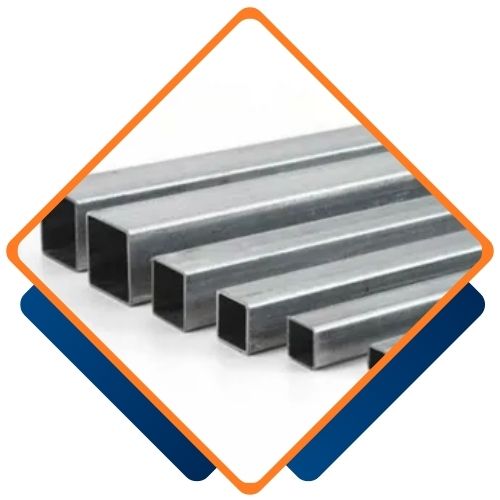

These square pipes are crafted from high-grade stainless steel, primarily from the 300 series, which gives them an excellent balance of strength and corrosion resistance. This specific composition allows them to be both ductile and remarkably durable, capable of withstanding significant structural loads and harsh environments without succumbing to rust or degradation. The inherent mechanical properties mean they offer great weldability and formability, making them a practical and long-lasting choice for a wide range of demanding applications, both indoors and out.
| Pipe Size | 12.75 X 12.75, 15 X 15, 20 X 20, 25 X 25, 30 X 30, 40 X 40, 50 X 50, 60 X 60, 75 X 75, 80 X 80, 90 X 90, 100 X100 |
| Grades | TP – 304/L/H, TP – 316/L/H/Ti, TP – 317L, TP – 321/H, TP – 347/H, 202, JT – 7, J4 – 1, TP – 409/L, TP – 410, TP – 430Ti, TP 439 |
| Standards | ASTM A249 – A269 – A312 – A358 – A409 – A554 – A778 – A789 – A790 |
| TOLERANCE on Length | Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm |
| Finish | Polished Grit 120 – 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished |
Hollow Sections:
Square:10 mmx10mm – 500 mmx500mm
Retangular:10mm x 20mm – 600mmx400mm
Round: 1/8″ – 4″
Wall Thickness: 0.5 – 20.0mm
Length:0.3 mtr – 18 mtr as customer required
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing stainless steel square pipes from Corazon Pipes and Tubes ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel Square Pipes in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Outside Diameter | Qty/B | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inches | mm | Lgh | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs |
| 3/8″ | 9.5 | 100 | 0.81 | 0.94 | 1.06 | 1.18 | 1.29 | 1.51 | 1.82 | |||||
| 1/2″ | 12.7 | 100 | 1.10 | 1.28 | 1.45 | 1.61 | 1.78 | 2.10 | 2.55 | |||||
| 5/8″ | 15.9 | 100 | 1.39 | 1.62 | 1.84 | 2.05 | 2.26 | 2.68 | 3.28 | |||||
| 3/4″ | 19.1 | 100 | 1.69 | 1.96 | 2.22 | 2.49 | 2.75 | 3.26 | 4.01 | |||||
| 7/8″ | 22.2 | 100 | 1.97 | 2.29 | 2.60 | 2.91 | 3.22 | 3.83 | 4.72 | |||||
| 1″ | 25.4 | 100 | 2.26 | 2.63 | 2.99 | 3.35 | 3.71 | 4.41 | 5.45 | |||||
| 11/8″ | 28.6 | 50 | 2.55 | 2.97 | 3.38 | 3.79 | 4.19 | 5.00 | 6.18 | |||||
| 11/4″ | 31.8 | 50 | 2.84 | 3.31 | 3.77 | 4.23 | 4.68 | 5.58 | 6.91 | |||||
| 11/2″ | 38.1 | 50 | 3.42 | 3.98 | 4.53 | 5.09 | 5.64 | 6.73 | 8.34 | |||||
| 15/8″ | 41.3 | 50 | 3.71 | 4.32 | 4.92 | 5.52 | 6.12 | 7.31 | 9.07 | |||||
| 13/4″ | 44.5 | 50 | 4.00 | 4.66 | 5.31 | 5.96 | 6.61 | 7.90 | 9.80 | |||||
| 2″ | 50.8 | 10 | 6.08 | 6.82 | 7.57 | 9.04 | 11.24 | 14.83 | 21.79 | |||||
| 21/2″ | 63.5 | 10 | 7.62 | 8.56 | 9.50 | 11.36 | 14.13 | 18.69 | 27.58 | |||||
| 3″ | 76.2 | 10 | 9.17 | 10.30 | 11.43 | 13.68 | 17.03 | 22.55 | 33.37 | 43.88 | ||||
| 31/2″ | 88.9 | 10 | 10.71 | 12.03 | 13.36 | 15.99 | 19.92 | 26.41 | 39.16 | 51.60 | ||||
| 4″ | 101.6 | 10 | 18.31 | 22.82 | 30.27 | 44.95 | 59.32 | 73.39 | 87.16 | |||||
| 5″ | 127 | 10 | ||||||||||||
| 6″ | 152.4 | 10 | ||||||||||||
Yes, we offer custom sizes for Stainless Steel Square Pipes to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.
Stainless Steel Square Pipes find extensive use in construction and structural projects, serving as support frameworks, columns, and handrails. Their smooth finish and resistance to corrosion make them a great choice for furniture manufacturing, architectural designs, and decorative features. Additionally, they are employed in automotive components, marine applications, and various engineering projects due to their impressive strength-to-weight ratio. In the food processing and pharmaceutical industries, these pipes are also favored for their hygienic properties and durability, making them a versatile option across multiple sectors.
