Home > Stainless Steel >Stainless Steel 409 Pipes

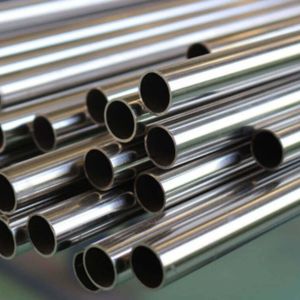

Nestled in the industrial heart of Manila, Philippines, Corazon Pipes and Tubes has built a solid reputation as a trusted manufacturer and supplier of high-quality steel products. Among their standout offerings are their Stainless Steel 409 Pipes, which are crafted with precision to meet the demanding needs of various industries. The company prides itself on delivering durable and reliable piping solutions, ensuring that clients receive products that excel in both performance and longevity, all backed by a commitment to exceptional customer service.
The composition of Stainless Steel 409 includes chromium at about 11%, which provides good corrosion resistance, along with titanium for stability. In terms of strength, these pipes offer a minimum yield strength of 170 MPa and can maintain their integrity up to 815 degrees Celsius. This specific formulation means the material resists corrosion from the atmosphere and exhaust gases, performing well in high-heat environments. They are a cost-effective option when you need resilience without the higher price of other stainless grades.
| Item | Stainless Steel 409 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |

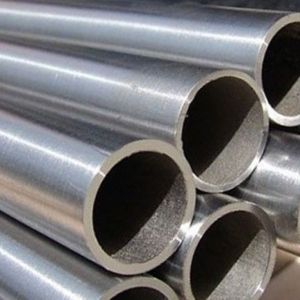

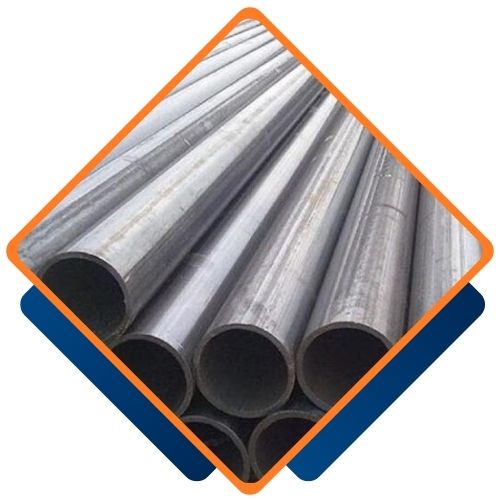

| Type | Seamless / ERW / Welded / Fabricated / CDW |

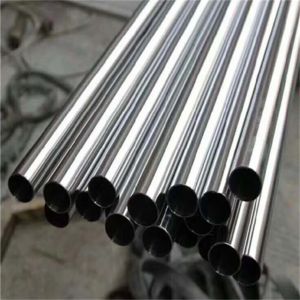

| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |

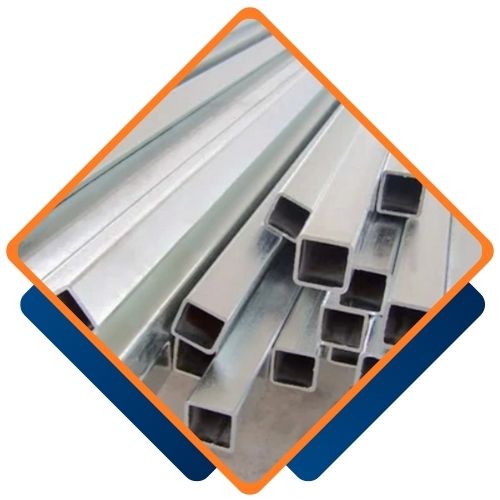

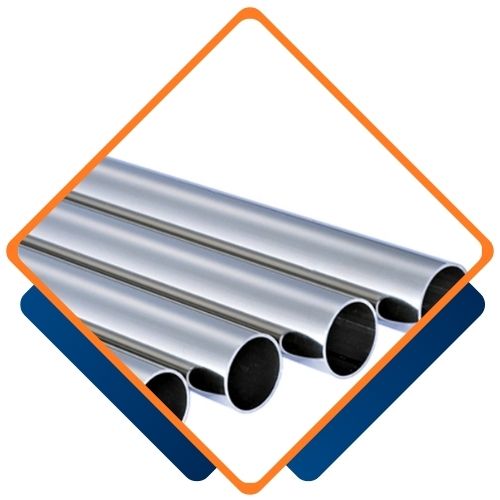

| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 409 | Min | – | – | – | – | – | 10.5 | – | – | – |
| max | 0.03 | 1.00 | 1.00 | 0.04 | 0.02 | 11.7 | – | 0.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 409 | 380 | 170 | 20 | 88 | 0.5t |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 409 Pipes from Corazon Pipes and Tubes ensures you get the high quality products you need. Our pipes are manufactured using advanced processes to ensure excellent durability and corrosion resistance. We adhere to strict industry standards with a focus on accuracy and quality. Our experienced team provides exceptional customer support, guiding you through your selection process. We offer competitive pricing and on-time delivery, ensuring you get your order when you need it. Trust Corazon to provide reliable and efficient pipeline solutions that will stand the test of time.
Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel 409 Pipes in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR | JIS | BS |
|---|---|---|---|---|---|---|
| 409 | 1.4512 | S40900 | X2CrTi12 | Z3CT12 | SUH409 | 409S19 |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
409 |
7800 |
200 |
11.0 |
11.7 |
12.4 |
25.8 |
27.5 |
460 |
600 |
Yes, we offer custom sizes for Stainless Steel 409 Pipes to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.
Stainless Steel 409 Pipes find wide application in the exhaust system of automobiles because they possess good resistance to exhaust gas corrosion and heat. They are also appropriate for use in farming equipment, heat exchangers, and tubular manifolds where moderate corrosion resistance is desirable. They are widely utilized in fabrication and structural work, particularly where looks are not a major factor but durability over the long term is desired. Their weldability, thermal stability, and economical cost make them a suitable material for application in challenging but affordable industrial and commercial applications.
