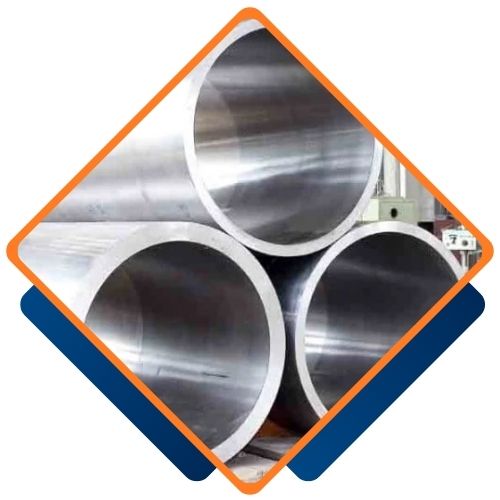

Stainless Steel 317L Pipes

Home > Stainless Steel > Stainless Steel 317L Pipes

Stainless Steel 317L PipesManufacturer, Supplier and Exporter in Manila, Philippines

Based in the thriving industrial landscape of Manila, Corazon Pipes and Tubes stands as a trusted partner for high-performance piping needs. We specialize in supplying premium Stainless Steel 317L pipes, engineered to excel where others fall short. Our commitment lies in providing robust solutions for the most demanding environments, from chemical processing plants to coastal installations. With a focus on unwavering quality and reliable service, we ensure that your critical projects are supported by materials built for endurance and corrosion resistance, right here in the Philippines.

317L Stainless Steel Pipes Exporter in Philippines, SS UNS S31703 Pipes Exporter in Cebu City, 317L Stainless Steel Pipe Manufacturer in West Manila, SUS 317L Pipes Price List in Philippines, ASTM A312 Stainless Steel 317L Pipe Supplier in Manila,Stainless Steel 1.4438 Pipes in Cebu City

What sets 317L apart is its enhanced chemical makeup, featuring higher levels of molybdenum, chromium, and nickel compared to standard 316 stainless. This specific composition is the secret to its superior resistance against a wide range of corrosive threats, particularly chloride pitting and crevice corrosion. The addition of these alloys also grants the material excellent mechanical strength and durability, allowing it to maintain its integrity under high temperatures and significant stress, making it a truly heavy-duty option.

Stainless Steel 317L Pipes Specification

Specifications	ASTM A312, A358 / ASME SA312, SA358
Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness Range	0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type	Seamless / ERW / Welded / Fabricated / CDW
Form	Round Pipes, Square Pipes, Rectangular Pipes
Length	Single Random, Double Random & Required Length
End	Plain End, Beveled End, Treaded
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5	EN 10216 317/317L Seamless Steel Pipe, EN 10216-5 1.4449 / 1.4438 Seamless Steel Pipes for pressure purposes
EN 10217-7	EN 10217 317/317L Welded Steel Pipe, Steel EN 10217-7 1.4449 / 1.4438 Welded Pipes for pressure purposes

Stainless Steel 317L Pipes Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
317L	min.	–	–	–	–	–	18.0	3.00	11.0	–
317L	max.	0.03	2.0	0.75	0.040	0.03	20.0	4.00	15.0	–

SS 317L Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
317L	515	205	35	95	217

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

SS 317L Schedule 40 Pipe Price List in Manila, Stainless Steel S31703 Pipes Supplier in Cebu City, SS 317L Pipes Supplier in Philippines, ASTM A312 Stainless Steel 317L Pipe Exporter in West Manila, AISI 317L Pipes Exporter in Manila,1 inch SS 317L Pipe Price in Puerto Princesa, SS 317L Pipe Weight Chart, SS 317L Schedule 20 Pipe Thickness, 317L Austenitic Stainless Steel Pipe Supplier in Philippines

Why Choose Stainless Steel 317L Pipes from Corazon Pipes and Tubes?

Choosing Stainless Steel 317L Pipes from Corazon Pipes and Tubes offers corrosion resistance and excellent durability, ideal for harsh environments. Their pipes are precisely engineered for durability and reliability, conforming to stringent industry standards. Corazon offers solutions tailored to suit specific business requirements, backed by exceptional customer service. Furthermore, their commitment to quality ensures longevity and performance, making them a reliable choice for a variety of applications. Trust Corazon’s expertise in providing quality stainless steel for your needs.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 317L Pipes Supplier in Manila, Philippines

Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel 317L Pipes in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 317L Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

ASME SA 312 TP317L Pipes Manila,Stainless Steel 317L Pipes Supplier in Philippines, 317L Stainless Steel Pipes Exporter in West Manila, SS UNS S31703 Pipes Supplier in Manila, SS 317L Schedule 20 Pipe Exporter in Cebu City

Types of Stainless Steel 317L Pipes

Are Custom Sizes Available for Stainless Steel 317L Pipes?

Yes, we offer custom sizes for Stainless Steel 317L Pipes to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.

SS UNS S31703 Pipes Exporter in Puerto Princesa, SUS 317L Pipes Supplier in Cebu City, 317L SS Pipes Manufacturer in West Manila, 317L Austenitic Stainless Steel Pipe Dealer in Manila, Stainless Steel S31703 Pipes Manufacturer in Manila,SS 317L Pipe Supplier in Philippines

Stainless Steel 317L Pipes are employed in multiple industries dealing with severe chemicals and corrosive liquids, including chemical processing units, pharmaceutical units, pulp and paper plants, and food processing units. They are also compatible for application in marine and offshore environments because they are resistant to chlorides and saltwater corrosion. 317L stainless steel pipes are perfect for use in heat exchangers, process piping, pressure vessels, and storage tanks. Stainless Steel 317L provides a consistent combination of weldability, corrosion resistance, and strength. It is perfect for applications where long-term performance in harsh service conditions is needed.
