Stainless Steel 446 Pipes Manufacturer, Supplier and Exporter in Manila, Philippines

Corazon Pipes and Tubes is a well-respected manufacturer and supplier located in Manila, Philippines, known for its top-notch Stainless Steel 446 Pipes. These pipes are crafted to provide outstanding resistance to oxidation, scaling, and corrosion, particularly in high-temperature settings. With a commitment to precise manufacturing, cutting-edge technology, and rigorous quality control, Corazon Pipes and Tubes meets international standards. Their Stainless Steel 446 Pipes are celebrated for their strength, durability, and long-lasting performance, making them the go-to choice for industries that require exceptional reliability in extreme heat and oxidizing conditions.

SS UNS S44600 Pipes Exporters in Puerto Princesa, ASME SA 312 TP446 Pipes Bodrum , SUS 446 Pipes Distributor in Cebu City, 446 SS Pipes Price Per Kg, 446 Austenitic Stainless Steel Pipe Supplier in Manila, SS 446 Pipe Stockist in Philippines, Stainless Steel 446 Pipes Dealer in West Manila

The composition of Stainless Steel 446 Pipes primarily includes iron, chromium (23–27%), along with trace amounts of molybdenum, silicon, and manganese, while keeping nickel content to a minimum. This ferritic stainless steel is known for its remarkable resistance to oxidation and sulfidation at high temperatures. These pipes boast a tensile strength of about 485 MPa and a yield strength of roughly 275 MPa, along with commendable creep resistance. Their impressive mechanical properties guarantee stability, durability, and performance in high-temperature and corrosive environments.

Stainless Steel 446 Pipes Specification

Specifications	:	ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358
Dimensions	:	ASTM, ASME and API
SS 446 Pipes	:	1/2″ NB – 16″ NB
ERW 446 Pipes	:	1/2″ NB – 24″ NB
EFW 446 Pipes	:	6″ NB – 100″ NB
Size	:	1/8″NB TO 30″NB IN
Specialized in	:	Large Diameter Size
Schedule	:	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type	:	Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form	:	Round, Square, Rectangular, Hydraulic Etc
Length	:	Single Random, Double Random & Cut Length.
End	:	Plain End, Beveled End, Treaded

Stainless Steel 446 Pipes Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Ni
446	0.15 max	1.00 max	1.00 max	0.04 max	0.03 max	min: 11.5 max: 13.5	0.50 max

SS 446 Pipes Mechanical Properties

Grade	Tensile Strength ksi (MPa) min	Yield Strength 0.2% offset ksi (MPa) min	Elongation (% in 50mm) min	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
446	65 (450)	30 (205)	20	217	96

Equivalent Grades of Stainless Steel 446 Pipe

STANDARD	UNS	WERKSTOFF NR.
SS 446	S44600	1.4000

Stainless Steel 446 Pipes Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
446	7750	200	9.9	11.4	11.6	24.9	28.7	460	570

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

SS 446 Schedule 40 Pipe Price List in Manila, Stainless Steel S44600 Pipes Supplier in Cebu City, SS 446 Pipes Price Per Kg, ASTM A312 Stainless Steel 446 Pipe Exporter in West Manila, AISI 446 Pipes Stockist in Manila,1 inch SS 446 Pipe Price List in Puerto Princesa, SS 446 Pipe Weight Chart, SS 446 Schedule 20 Pipe Thickness, 446 Austenitic Stainless Steel Pipe Manufacturers in Philippines

Why Choose Stainless Steel 446 Pipes from Corazon Pipes and Tubes?

Choosing Stainless Steel 446 Pipe from Corazon Pipes and Tubes ensures the highest quality products and industry standards. Their pipe offers exceptional corrosion resistance and durability, making it ideal for demanding applications. Corazon offers a wide range of sizes and modifications to meet specific project requirements. Focusing on customer service, they ensure on-time delivery and support throughout the buying process. Their competitive pricing and commitment to quality make them a choice in the market. Additionally, Corazon’s expertise in stainless steel components ensures reliable and durable performance.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 446 Pipes Supplier in Manila, Philippines

Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel 446 Pipes in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 446 Pipe Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

ASME SA 312 TP446 Pipes Manila,Stainless Steel 446 Pipes Exporters in Philippines, 446 Stainless Steel Pipe Manufacturers in West Manila, SS UNS S44600 Pipes Supplier in Manila, SS 446 Schedule 20 Pipe Stockist in in Puerto Princesa, SS 446 Pipes Distributor in Philippines, 446 Stainless Steel Pipes in Davao City

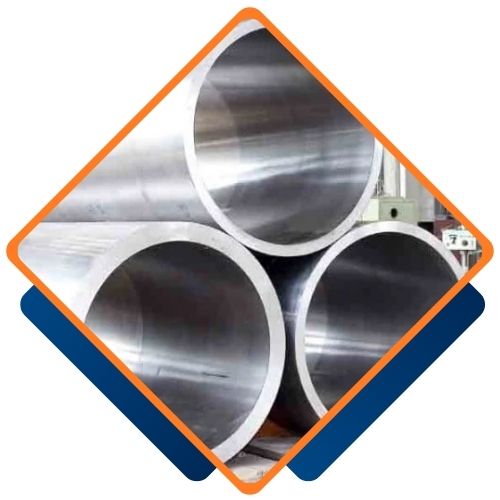

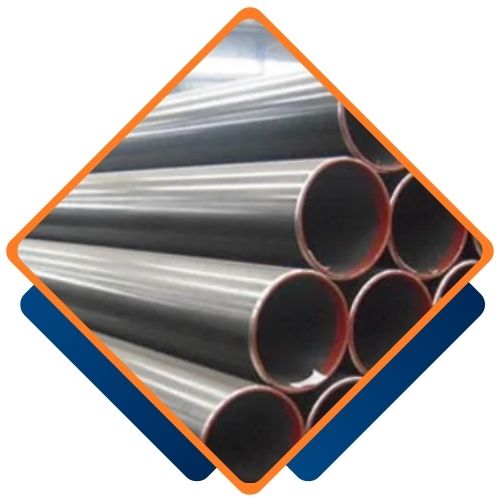

Types of Stainless Steel 446 Pipes

Are Custom Sizes Available for Stainless Steel 446 Pipes?

Yes, we offer custom sizes for Stainless Steel 446 Pipes to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.

446 Stainless Steel Pipes Exporter in Philippines, SS UNS S44600 Pipes Supplier in Cebu City, 446 Stainless Steel Pipe Manufacturer in West Manila, SUS 446 Pipes Price List in Philippines, ASTM A312 Stainless Steel 446 Pipe Distributor in Manila,Stainless Steel 1.4000 Pipes in Puerto Princesa, Stainless Steel TP446 Pipe Exporters in Philippines

Stainless Steel 446 Pipes find extensive use in various industries, including power generation, petrochemical, cement, furnace construction, and heat treatment. They are perfect for applications that involve high temperatures, oxidation, and sulfur-rich atmospheres. These pipes are commonly utilized in heat exchangers, kiln linings, boiler tubes, and industrial exhaust systems due to their excellent resistance to scaling and corrosion. Additionally, Stainless Steel 446 Pipes are well-suited for chemical processing and refinery equipment, providing dependable performance, low maintenance, and a long service life even in demanding industrial conditions.
