Home > Stainless Steel Tubing > Stainless Steel 201 Tubing
In the vibrant industrial landscape of Manila, Corazon Pipes and Tubes stands as a trusted partner for quality metal solutions. We take pride in manufacturing and supplying Stainless Steel 201 tubing, a versatile and cost-effective option that doesn’t compromise on performance. Our commitment lies in delivering products that meet the rigorous demands of various Philippine industries, ensuring reliability and durability for every project, big or small. You can count on us for tubing that combines strength with excellent value.
The composition of Stainless Steel 201 includes chromium, nitrogen, and a lower nickel content than the 300 series, which is the secret to its budget-friendly nature. This blend gives the tubing solid resistance to corrosion, making it a tough and reliable choice. It boasts strong mechanical properties, offering good tensile strength and durability, especially in applications that demand formability and a high strength-to-weight ratio. This balance makes it a practical workhorse for many general purposes.
Standard | ASTM, AISI, GB, JIS, customers’ requests available |
Size | Round Tube: OD: 16-119mm or customized |
Thickness | 0.25mm-3.0mm |
Length | 6m or according to customers’ request |
Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
Thickness: ±0.05mm | |
Length: ±0.5mm | |
Ends | In plain end or bevelled ends or as your requirements |
Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
B. Gloss #400,Mirror #600 – #1000 | |
C. Brushed | |
D. Wood Grain | |
E. Embossed, Threaded | |
Application | Decorations, constructions, food industry, etc. |
Certification | ISO, SGS |
Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |

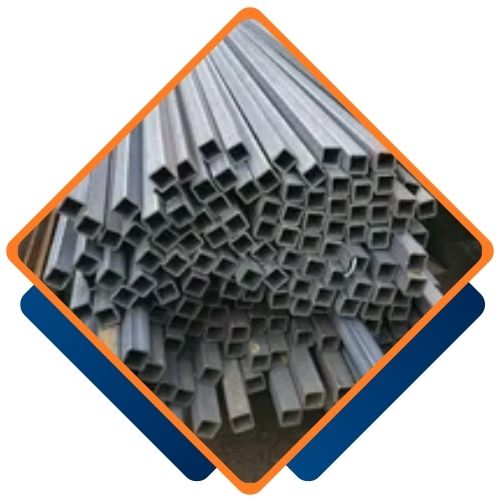

Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
Length | 6m or according to customer’s request |
Outer diameter | 6.35-219mm |
Tolerance | Outer diameter :±0.2mm |
Thickness :±0.02mm | |
Length :±0.5mm | |
Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Stainless Steel 201 Tubing from Corazon Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Corazon Pipes and Tubes, a leading supplier of Stainless Steel 201 Tubing in Manila, Philippines, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Corazon Pipes and Tubes, we provide custom sizes of Stainless Steel 201 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
You’ll find **Stainless Steel 201 Tubing** used in a variety of applications, especially in architectural and interior design projects like handrails, balustrades, furniture, and decorative frameworks. It’s also a go-to choice for automotive components, kitchen equipment, storage racks, and shelving, thanks to its corrosion resistance and attractive finish. In industrial settings, it’s utilized for process piping, conveyor systems, and general engineering structures where moderate strength and durability are key. Its excellent weldability and formability make it perfect for custom designs and fabrication.
