Home > Stainless Steel > Stainless Steel 317 Tubing
In the bustling industrial landscape of Manila, Corazon Pipes and Tubes has built a strong reputation as a trusted partner for high-performance materials. We take pride in offering reliable and accessible solutions, and our Stainless Steel 317 tubing is a perfect example. This particular grade is engineered for those truly demanding environments where others might fall short, providing exceptional resilience against a wide range of corrosive threats to ensure the longevity and safety of your critical operations.
The strength of Stainless Steel 317 comes from its carefully balanced composition, which includes higher levels of chromium, nickel, and, most importantly, molybdenum compared to many common stainless steels. This specific formula gives it superior resistance to pitting and crevice corrosion. In terms of mechanical strength, it maintains excellent toughness and durability, even when faced with high temperatures, making it a robust choice for challenging industrial settings.
| Tube Standard | ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554 |
| Tube Dimension | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Seamless Tube Sizes | 1 / 2″ NB – 16″ NB |
| Welded Tube Sizes | 1 / 2″ NB – 24″ NB |
| Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Tube Manufacturing Process | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Stainless Steel Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Tube Length | Single Random, Double Random, Standard & Cut length |
| Tube End Types | Plain Ends (PE), Threaded Ends (TE), Bevelled Ends (BW), Grooved Mechanical Joints or Grooved Ends, TBE (Treaded Both Ends) |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 317 | min. | – | – | – | – | – | 18.0 | 3.0-4.0 | 11.0 | – |
| max. | 0.08 | 2.0 | 1.0 | 0.040 | 0.030 | 20.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 317 | 515 | 205 | 35 | 75 | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 317 Tubing from Corazon Pipes and Tubes ensures high quality and durability, as these tubing offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel 317 Tubing in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

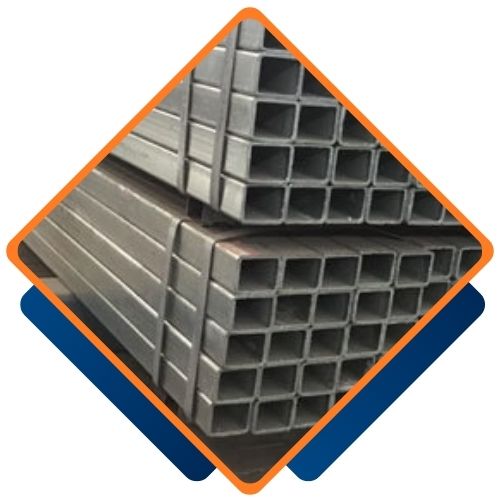

| Dimensions | Wall | Weight per | Dimensions | Wall | Weight per | |
|---|---|---|---|---|---|---|
| (mm) | (mm) | metre (kg) | (mm) | (mm) | metre (kg) | |
| 12.7 x 12.7 | 1.20 | 0.44 | 40 x40 | 1.20 | 1.49 | |
| 12.7 x 12.7 | 1.50 | 0.55 | 40 x40 | 1.50 | 1.85 | |
| 15 x 15 | 1.20 | 0.53 | 40 x40 | 2.00 | 2.45 | |
| 15 x 15 | 1.50 | 0.65 | 40 x40 | 3.00 | 3.75 | |
| 20 x 20 | 1.20 | 0.71 | 50 x50 | 1.50 | 2.32 | |
| 20 x 20 | 1.50 | 0.88 | 50 x50 | 2.00 | 3.08 | |
| 20 x 20 | 2.00 | 1.19 | 50 x50 | 3.00 | 4.65 | |
| 25 x 25 | 1.20 | 0.92 | 60 x60 | 2.00 | 3.71 | |
| 25 x 25 | 1.50 | 1.14 | 60 x60 | 3.00 | 5.49 | |
| 25 x 25 | 2.00 | 1.49 | 70 x70 | 3.00 | 6.53 | |
| 25 x 25 | 3.00 | 2.20 | 80 x80 | 2.00 | 4.98 | |
| 30 x 30 | 1.20 | 1.10 | 80 x80 | 3.00 | 7.53 | |
| 30 x 30 | 1.50 | 1.37 | 100 x 100 | 2.00 | 6.40 | |
| 30 x 30 | 2.00 | 1.84 | 100 x 100 | 3.00 | 9.53 | |
| 30 x 30 | 3.00 | 2.72 | ||||
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 317 | 8000 | 193 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 740 |
|
OD Size
Inches |
Tolerances, Inches |
||
|
OD,
Inches |
Wall |
Cut
Length (a), In. |
|
|
Less than 1 |
±0.004 |
All Sizes
± 10% |
+1/8–0 |
|
1 to 1-1/2 |
±0.006 |
||
|
Over 1-1/2 to 2 |
±0.008 |
||
|
Over 2 to 2-1/2 |
±0.010 |
+3/16–0 |
|
|
Over 2-1/2 to 3 |
±0.012 |
||
|
Over 3 to 4 |
±0.015 |
||
|
Over 4 to 5 |
+0.015
– 0.025 |
||
Yes, we offer custom sizes for Stainless Steel 317 Tubing to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.

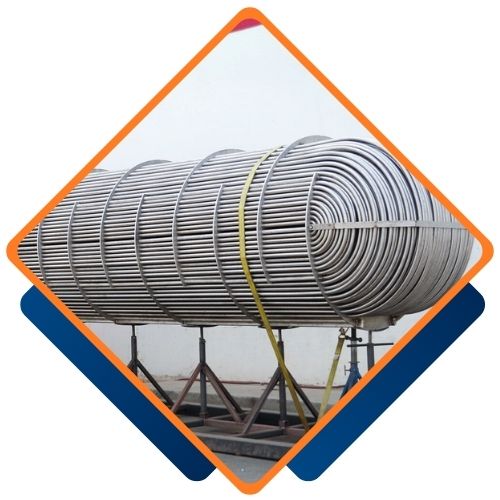

Stainless Steel 317 Tubing finds application in heat exchangers, evaporators, process piping, condensers, and ocean equipment where corrosion resistance along with strength is needed. It is well suited for applications exposed to aggressive chemicals such as sulfuric, acetic, and citric acids. The tubing is especially useful in applications that need to resist localized corrosion in chloride environments. Stainless Steel 317 Tubing provides long-term performance, low maintenance, and consistent reliability, and it is thus the ideal option for critical fluid handling and thermal systems under extreme operating conditions.
